PET Injection Machine HSJ-400P

PET Injection Machine HSJ-400P

Product Details:

Place of Origin: CHINA
Brand Name: PLASTAR
Model Number: HSJ-400P
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price:
Delivery Time: 30DAYS--UP
Payment Terms: T/T OR L/C
Supply Ability: 1000000

 PET Injection Machine HSJ-400P factory

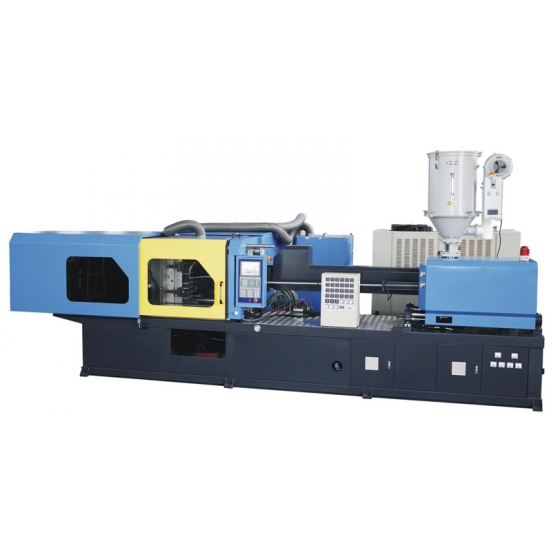

Large Image:PET Injection Machine HSJ-400P

  • Feature:
  • Proffesional PET screw and barrel with 1:23 L/D ratio to ensure high mix and plasticize quality;
  • Big channel cooling water regulating to ensure multi-capacity PET proform molds cooling fast and enough;
  • Increase eject force to ensure multi PET proform taking out;
  • PID Barrel exactly temperature control.
Device Item      Model
Unit
PSJ-400P
Injection Screw diameter mm 75
Screw L/D ratio L/D 23
Theoretical shot volume cm3 1500
Injection weight (PET) g 1639
Injection pressure MPa 177.5
Injection rate g/s 398
Plastizing capacity g/s 67
Screw speed range r/min 0~180
Making-up Clamping force kn 4000
Clearance between tie bars mm 720×720
Opening stroke mm 710
Max mould height mm 720
Min mould height mm 250
Ejector force kn 110
Ejector stroke mm 200
Other Pump power kw 45
Heating power kw 30.5
Oil Tank capacity l 1200
Machine weight t 18
Weight dimension m 8.8×2.0×.2.25
