PET Injection Machine HSJ-PSJ-180P(B)

PET Injection Machine HSJ-PSJ-180P(B)

Product Details:

Place of Origin: CHINA
Brand Name: PLASTAR
Model Number: PSJ-180P(B)
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price:
Delivery Time: 30DAYS--UP
Payment Terms: T/T OR L/C
Supply Ability: 1000000

 PET Injection Machine HSJ-PSJ-180P(B) factory

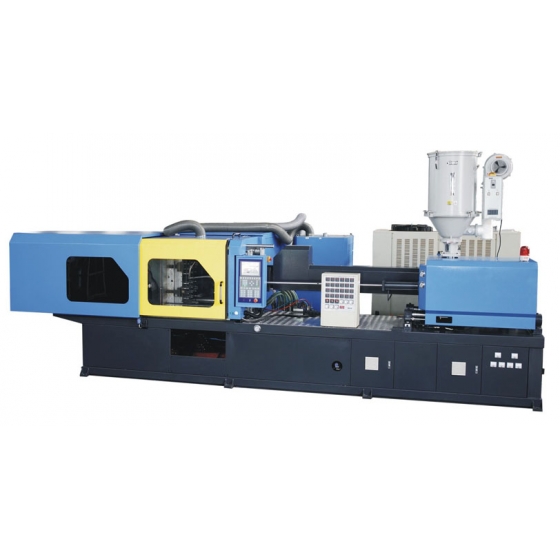

Large Image:PET Injection Machine HSJ-PSJ-180P(B)

  • Feature:
  • Proffesional PET screw and barrel with 1:23 L/D ratio to ensure high mix and plasticize quality;
  • Big channel cooling water regulating to ensure multi-capacity PET proform molds cooling fast and enough;
  • Increase eject force to ensure multi PET proform taking out;
  • PID Barrel exactly temperature control.
Device Item      Model
Unit
PSJ-180P(B)
Injection Screw diameter mm 65
Screw L/D ratio L/D 23
Theoretical shot volume cm3 829
Injection weight (PET) g 900
Injection pressure MPa 141.6
Injection rate g/s 200
Plastizing capacity g/s 38.2
Screw speed range r/min 0~110
Making-up Clamping force kn 1800
Clearance between tie bars mm 460×460
Opening stroke mm 460
Max mould height mm 480
Min mould height mm 200
Ejector force kn 61
Ejector stroke mm 130
Other Pump power kw 22
Heating power kw 18.32
Oil Tank capacity l 500
Machine weight t 6.3
Weight dimension m 5.9×1.35×1.85
