PET Injection Machine HSJ--330P
Product Details:
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PLASTAR |
| Model Number: | PSJ-330P |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | |
| Delivery Time: | 30DAYS--UP |
| Payment Terms: | T/T OR L/C |
| Supply Ability: | 1000000 |
-

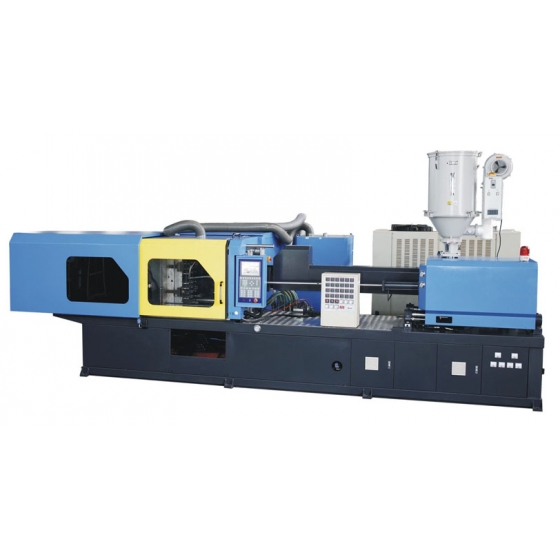

Large Image:PET Injection Machine HSJ--330P
- Feature：
- Proffesional PET screw and barrel with 1:23 L/D ratio to ensure high mix and plasticize quality;
- Big channel cooling water regulating to ensure multi-capacity PET proform molds cooling fast and enough;
- Increase eject force to ensure multi PET proform taking out;
- PID Barrel exactly temperature control.
| Device | Item | Model Unit |
PSJ-330P |
| Injection | Screw diameter | mm | 70 |
| Screw L/D ratio | L/D | 23 | |
| Theoretical shot volume | cm3 | 1192 | |
| Injection weight （PET） | g | 1300 | |
| Injection pressure | MPa | 147 | |
| Injection rate | g/s | 232 | |
| Plastizing capacity | g/s | 54 | |
| Screw speed range | r/min | ０～120 | |
| Making-up | Clamping force | kn | 3300 |
| Clearance between tie bars | mm | 620×620 | |
| Opening stroke | mm | 600 | |
| Max mould height | mm | 680 | |
| Min mould height | mm | 280 | |
| Ejector force | kn | 87 | |
| Ejector stroke | mm | 160 | |
| Other | Pump power | kw | 30 |
| Heating power | kw | 23.72 | |
| Oil Tank capacity | l | 600 | |
| Machine weight | t | 12.2 | |
| Weight dimension | m | 7.0×1.7×2.1 |
Product Tag :
PET Injection machine
