PET Injection Machine HSJ--280P

PET Injection Machine HSJ--280P

Product Details:

Place of Origin: CHINA
Brand Name: PLASTAR
Model Number: PSJ-280P
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price:
Delivery Time: 30DAYS--UP
Payment Terms: T/T OR L/C
Supply Ability: 10000

 PET Injection Machine HSJ--280P factory  PET Injection Machine HSJ--280P factory

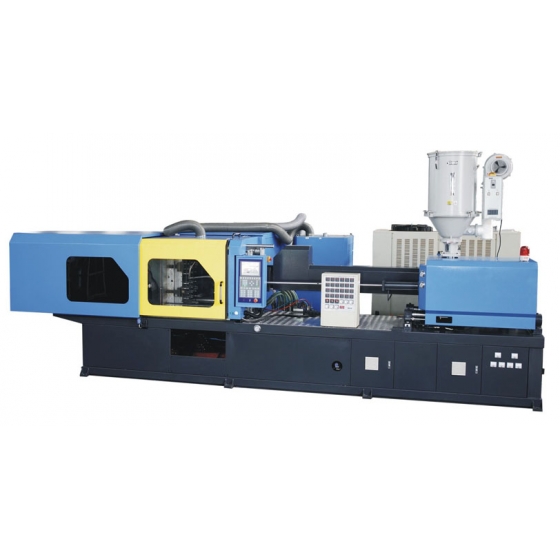

Large Image:PET Injection Machine HSJ--280P

  • Feature:
  • Proffesional PET screw and barrel with 1:23 L/D ratio to ensure high mix and plasticize quality;
  • Big channel cooling water regulating to ensure multi-capacity PET proform molds cooling fast and enough;
  • Increase eject force to ensure multi PET proform taking out;
  • PID Barrel exactly temperature control.
Device Item      Model
Unit
PSJ-280P
Injection Screw diameter mm 70
Screw L/D ratio L/D 23
Theoretical shot volume cm3 1190
Injection weight (PET) g 1300
Injection pressure MPa 128.5
Injection rate g/s 270
Plastizing capacity g/s 51
Screw speed range r/min 0~115
Making-up Clamping force kn 2800
Clearance between tie bars mm 580×580
Opening stroke mm 570
Max mould height mm 610
Min mould height mm 250
Ejector force kn 87
Ejector stroke mm 160
Other Pump power kw 22
Heating power kw 21.6
Oil Tank capacity l 700
Machine weight t 10..5
Weight dimension m 7.0×1.65×2.0
