PET Injection Machine HSJ-250P(B)

PET Injection Machine HSJ-250P(B)

Product Details:

Place of Origin: CHINA
Brand Name: PLASTAR
Model Number: HSJ-250P(B)
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price:
Delivery Time: 30DAYS--UP
Payment Terms: T/T OR L/C
Supply Ability: 1000000

 PET Injection Machine HSJ-250P(B) factory

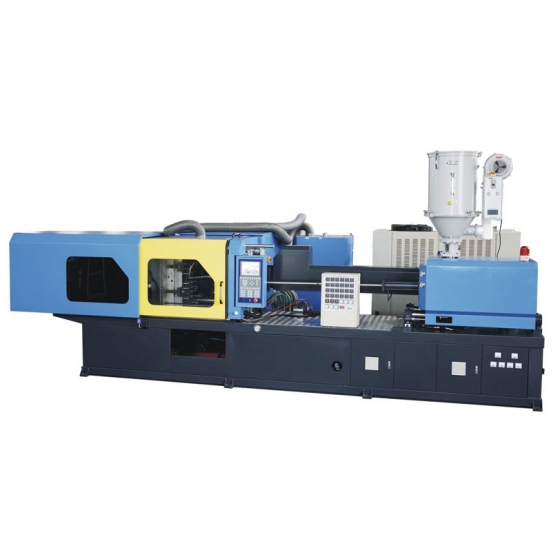

Large Image:PET Injection Machine HSJ-250P(B)

  • Feature:
  • Proffesional PET screw and barrel with 1:23 L/D ratio to ensure high mix and plasticize quality;
  • Big channel cooling water regulating to ensure multi-capacity PET proform molds cooling fast and enough;
  • Increase eject force to ensure multi PET proform taking out;
  • PID Barrel exactly temperature control.
Device Item      Model
Unit
PSJ-250P(B)
Injection Screw diameter mm 70
Screw L/D ratio L/D 23
Theoretical shot volume cm3 1192
Injection weight (PET) g 1300
Injection pressure MPa 147
Injection rate g/s 232
Plastizing capacity g/s 54
Screw speed range r/min 0~120
Making-up Clamping force kn 2500
Clearance between tie bars mm 570×570
Opening stroke mm 550
Max mould height mm 600
Min mould height mm 250
Ejector force kn 70
Ejector stroke mm 150
Other Pump power kw 30
Heating power kw 23.72
Oil Tank capacity l 700
Machine weight t 9
Weight dimension m 6.6×1.55×2.1
