HomeProducts PET Blowing Machine

PP.PC.PS Blowing Machine

PP.PC.PS Blowing Machine

Product Details:

Place of Origin: CHINA
Brand Name: PLASTAR
Model Number: XT-600-1P--XT2500-1P
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price:
Delivery Time: 45DAYS--UP
Payment Terms: T/T OR L/C
Supply Ability: 10000

 PP.PC.PS Blowing Machine factory

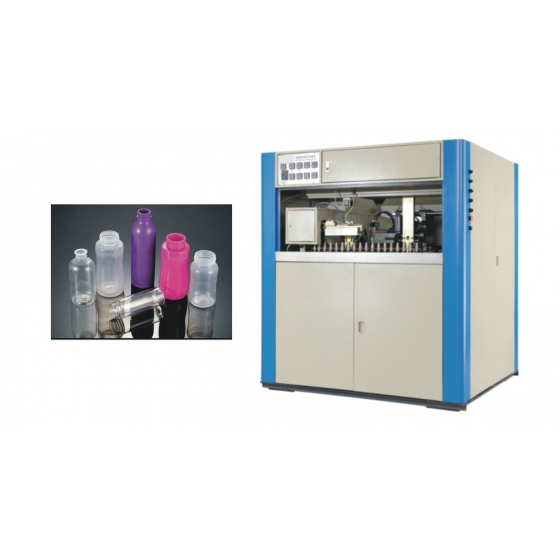

Large Image:PP.PC.PS Blowing Machine


XT-P series is a kind of two step bottle blowing machine which suitable for blowing plastic bottle with PP,PC &PS raw material.
XT-P series can blowing bottle 800 BPH in one cavity ,the max neck size can up to 80 mm, the max volume is 2.5L
DESCRIPTION UNIT XT 600-1P XT1500-1P XT2500-1P
Cavity number Cavity 1 1 1
Clamping stroke Mm 100 120 160
Output Pcs/hr 800 600 500
Total power Kw 19 32 35
Power consumption Kw ≤12 ≤15 ≤17
Pressure for working Kg 10 10 10
Pressure for blowing Kg 30 30 30
Flow rate for working M3 0.6 1 1.3
Flow rat for blowing M3 1 1.2 1.5
Neck diameter Mm 20-38 40-80 40-80
Max. Diameter & height Mm 90*220 105*300 145*300
Machine dimension M 1.78x1.55x2 2.9*1.58*2 2.9*1.58*2
Machine weight kg 1050 1200 1800
