Injection Molding Machine PSJ-150

Injection Molding Machine PSJ-150

Product Details:

Place of Origin: CHINA
Brand Name: PLASTAR
Model Number: PSJ-150
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price:
Delivery Time: 30DAYS
Payment Terms: T/T OR L/C
Supply Ability: 10000

 Injection Molding Machine PSJ-150 factory

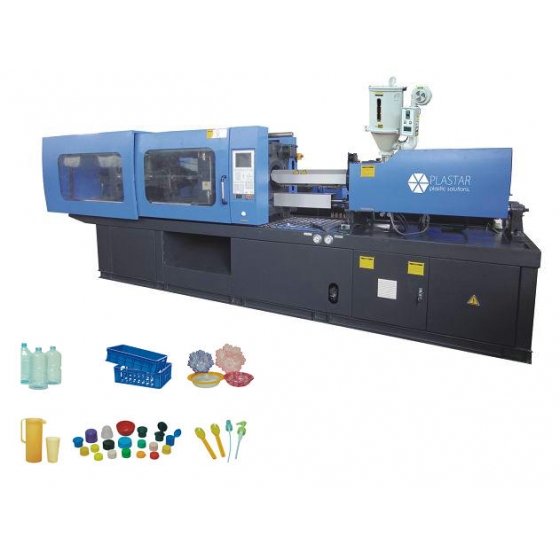

Large Image:Injection Molding Machine PSJ-150


Clamping Unit
: Arrange obliquely five-point and elbow type structure. Optimization design on parameter of the computer. Finite-element analysis is applied to design the plates. The unit also functions of low pressure mold protection with extra sensitivity. Machinery, electric pair of safe protection function to insure the safety;
  • Oil motor drive the gear to adjusts mold, the moving ahead simultaneously is good and can adjusting the mold automatically according to the pressure set up, very convenient and reliable;
  • Computer Controlled: According imported computer which special for injection machine. The function is powerful and controlled by CPU, improve the speed in control system and the alarm on over-temperature. Improve the working speed of machine;
  • Injection Unit: Double guiding rod supporting. Dual-cylinder balance injection system, Single-Cylinder push and draw back setting. Multi-stage pressure & speed injection. One –string hydraulic motor setting. Super quality steel screw stem mixed with chrome, molybdenum and aluminum and barrel disposed by nitrogen. Suitable for every kinds of plastic raw material;
  • Hydraulic Unit: Adopt imported advance hydraulic components;
  • Storing type on automatic lubricating system of oil;
  • With quick response and steady capability, servo gearshift dynamical control system has equipped with pressure feedback device with high precision and sensitivity, which forms a close –loop precision control and provide products with high stability;
  • Servo energy saving injection molding machine to achieve the maximum output, in comparison with conventional hydraulic injection molding machines, their response speed have been obviously quickened and cycle time effectively shortened, improving production efficiency;
  • There is no extra energy consumption due to output volume changes according to load alteration. The phase of holding pressure, servo motor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor doesn’t work and consumes no energy. According to different products, servo energy –saving injection molding machines will save 20% -80% energy and bring your prominent economic benefit.
Device Item     Model
Unit
PSJ-150
A B C
Injection Screw diameter mm 40 45 48
Screw L/D ratio L/D 22.5 20 18.75
Theoretical shot volume cm3 251 318 362
Injection weight(PS) g 228 289 329
Injection pressure MPa 229.7 181.5 159.5
Injection rate(PS) g/s 77 98 111
Plastizing capacity(PS) g/s 11.6 17.2 20.6
Screw speed range r/min 0~200
Making-up Clamping force kn 1500

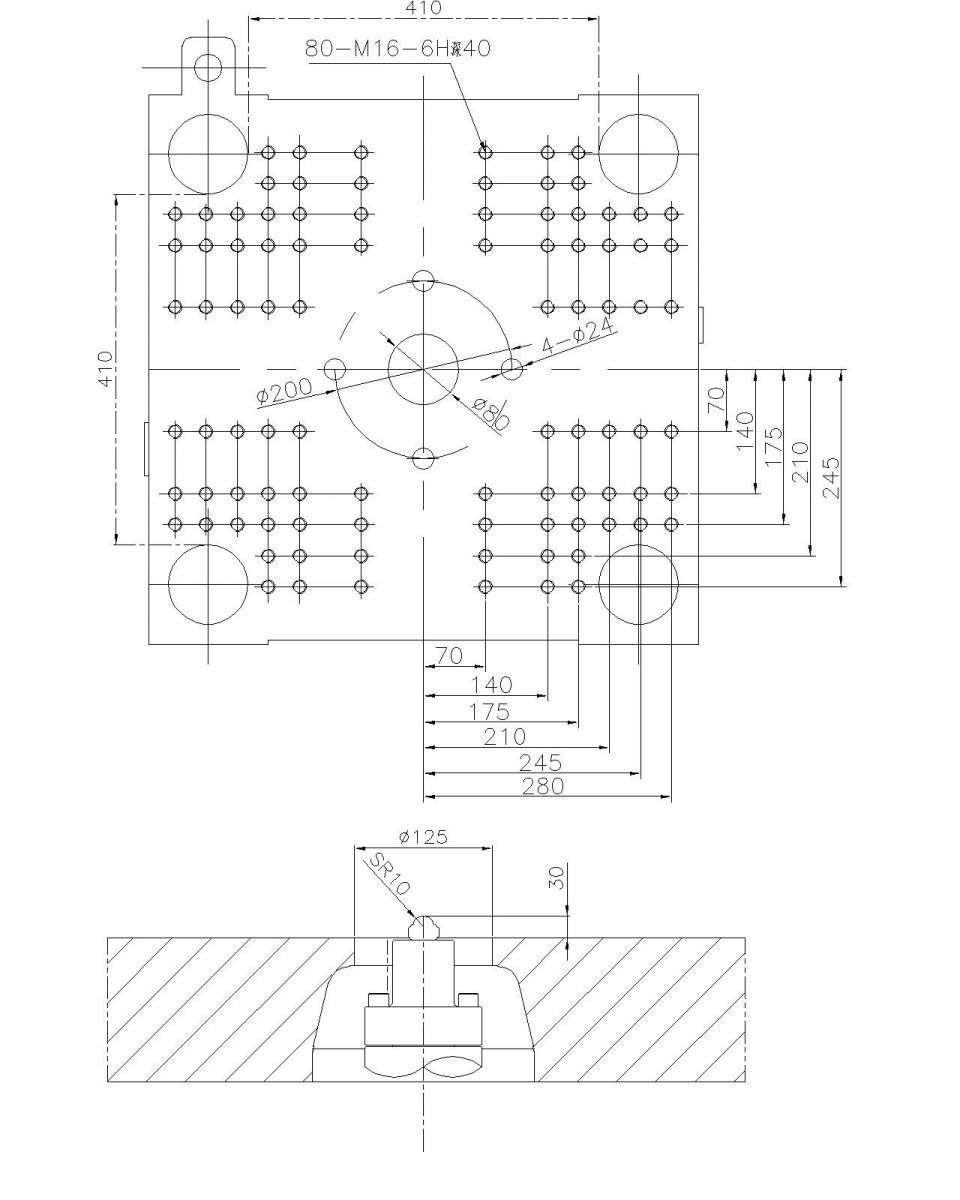

Clearance between tie bars mm 410×410
Opening stroke mm 400
Max mould height mm 430
Min mould height mm 150
Other Ejector force kn 33
Ejector stroke mm 120
Pump power kw 15
Heating power kw 9.27
Oil tank capacity l 270
Machine weight t 4.5
Machine dimension m\ 4.6×1.2×1.8
