PET Injection Machine HSJ-650P
Product Details:
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PLASTAR |
| Model Number: | HSJ-650P |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | |
| Delivery Time: | 30DAYS--UP |
| Payment Terms: | T/T OR L/C |
| Supply Ability: | 1000000 |
-

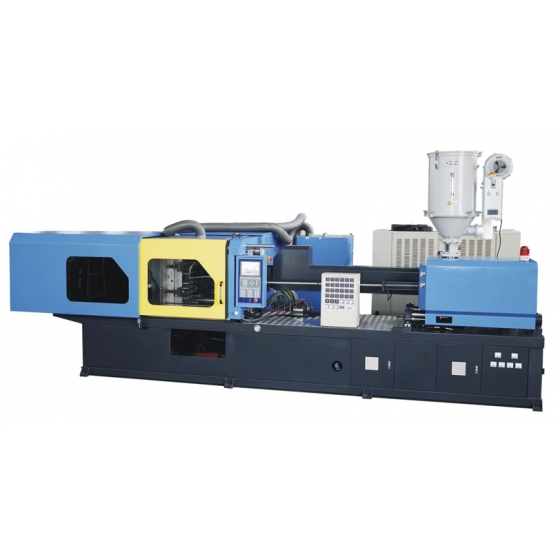

Large Image:PET Injection Machine HSJ-650P
- Feature：
- Proffesional PET screw and barrel with 1:23 L/D ratio to ensure high mix and plasticize quality;
- Big channel cooling water regulating to ensure multi-capacity PET proform molds cooling fast and enough;
- Increase eject force to ensure multi PET proform taking out;
- PID Barrel exactly temperature control.
| Device | Item | Model Unit |
PSJ-650P |
| Injection | Screw diameter | mm | 100 |
| Screw L/D ratio | L/D | 23 | |
| Theoretical shot volume | cm3 | 3728 | |
| Injection weight （PET） | g | 4070 | |
| Injection pressure | MPa | 149 | |
| Injection rate | g/s | 683 | |
| Plastizing capacity | g/s | 127 | |
| Screw speed range | r/min | ０～130 | |
| Making-up | Clamping force | kn | 6500 |
| Clearance between tie bars | mm | 910×840 | |
| Opening stroke | mm | 860 | |
| Max mould height | mm | 860 | |
| Min mould height | mm | 400 | |
| Ejector force | kn | 110 | |
| Ejector stroke | mm | 250 | |
| Other | Pump power | kw | 37+22 |
| Heating power | kw | 42.5 | |
| Oil Tank capacity | l | 1600 | |
| Machine weight | t | 36 | |
| Weight dimension | m | 10.5×2.15×.2.5 |
Product Tag :
PET Injection machine
